/ One Plus
Design: O/M + Bartenbach GmbH
Ceiling-recessed luminaire with die-cast aluminium body and heat sink.
Orientable by 30° on the horizontal axis and 355° on the vertical axis.
Reflector built based on micro surfaces with complex geometry coated with aluminium alloy, creating a high-gloss, entirely mirrored surface. Accurate reflector for a defined and controlled beam of light, achieving the maximum efficiency.
Reduced height <67mm.
Recessing accessory for trimless version supplied separately.
Ceiling-recessed luminaire with die-cast aluminium body and heat sink.
Orientable by 30° on the horizontal axis and 355° on the vertical axis.
Reflector built based on micro surfaces with complex geometry coated with aluminium alloy, creating a high-gloss, entirely mirrored surface. Accurate reflector for a defined and controlled beam of light, achieving the maximum efficiency.
Reduced height <67mm.
Recessing accessory for trimless version supplied separately.
Color temperature | 2200K-5000K | CRI | >80 | |

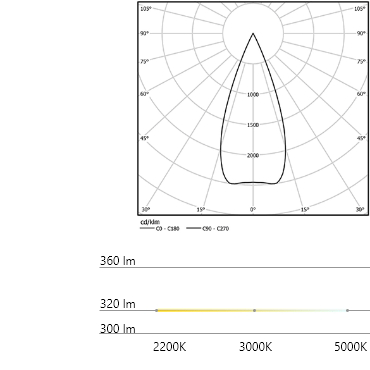

Beam Angle | Medium 40° | LOR | 70% | |
UGR | <10 | Colour deviation | 2-step MacAdam | |
Light source power | 5,6W* | Life time | >50.000h, L80/B10 | |
Light source flux | 460lm* | Control | DALI | |
Light source efficiency | 82lm/W | IP rating | 20 | |
Luminaire power | 7W* | IK rating | - | |
Luminaire flux | 320lm* | Weight | 0,42Kg | |
Luminaire efficiency | 46lm/W | Wiring | 230Vac | 50/60Hz |
Color temperature | 2200K-5000K |
Beam Angle | Medium 40° |
UGR | <10 |
Light source power | 5,6W* |
Light source flux | 460lm* |
Light source efficiency | 82lm/W |
Luminaire power | 7W* |
Luminaire flux | 320lm* |
Luminaire efficiency | 46lm/W |
CRI | >80 |
LOR | 70% |
Colour deviation | 2-step MacAdam |
Life time | >50.000h, L80/B10 |
Control | DALI |
IP rating | 20 |
IK rating | - |
Weight | 0,42Kg |
Wiring | 230Vac | 50/60Hz |
Last Update: 21 November, 2022
/ Downloads
/ Accessories
/ Warnings
The cutout dimensions are for plasterboard ceilings. For other type of material please contact: support@om-light.com
