/ LS Wall end mounted
Desing: Eduardo Souto de Moura

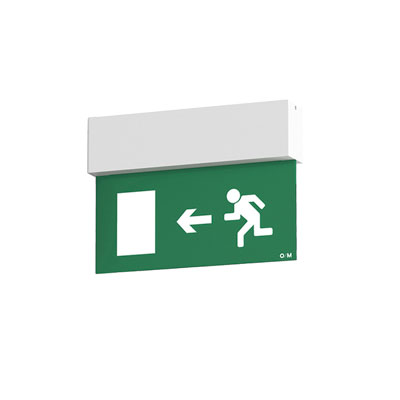

Emergency wall end mounted luminaire with body made of aluminium profile with matt finish or electrostatic 100% polyester paint with textured-finish.
Pictogram, with acrylic structure and adhesive film, supplied separately.
The same luminaire allows maintained or non-maintained mode.
Luminaire with self-testing mode.
Prepared for remote control (rest mode).
3-hour autonomy.
Compliant with the following standards:
EN60598-2-22 / EN60598-1 / UNE 20392
Emergency wall end mounted luminaire with body made of aluminium profile with matt finish or electrostatic 100% polyester paint with textured-finish.
Pictogram, with acrylic structure and adhesive film, supplied separately.
The same luminaire allows maintained or non-maintained mode.
Luminaire with self-testing mode.
Prepared for remote control (rest mode).
3-hour autonomy.
Compliant with the following standards:
EN60598-2-22 / EN60598-1 / UNE 20392
| Color temperature | 5000K | CRI | - | |
| Beam Angle | LOR | 19% | ||
| UGR | - | Colour deviation | - | |
| Light source power | 2,4W | Life time | >50.000h, L80/B10 | |
| Light source flux | 340lm | Control | - | |
| Light source efficiency | 142lm/W | IP rating | 22 | |
| Luminaire power | 3,1W | IK rating | - | |
| Luminaire flux | 65lm | Weight | 1,5Kg | |
| Luminaire efficiency | 21lm/W | Wiring | 230Vac | 50/60Hz |
| Color temperature | 5000K |
| Beam Angle | |
| UGR | - |
| Light source power | 2,4W |
| Light source flux | 340lm |
| Light source efficiency | 142lm/W |
| Luminaire power | 3,1W |
| Luminaire flux | 65lm |
| Luminaire efficiency | 21lm/W |
| CRI | - |
| LOR | 19% |
| Colour deviation | - |
| Life time | >50.000h, L80/B10 |
| Control | - |
| IP rating | 22 |
| IK rating | - |
| Weight | 1,5Kg |
| Wiring | 230Vac | 50/60Hz |
Last Update: 21 November, 2022
