Over

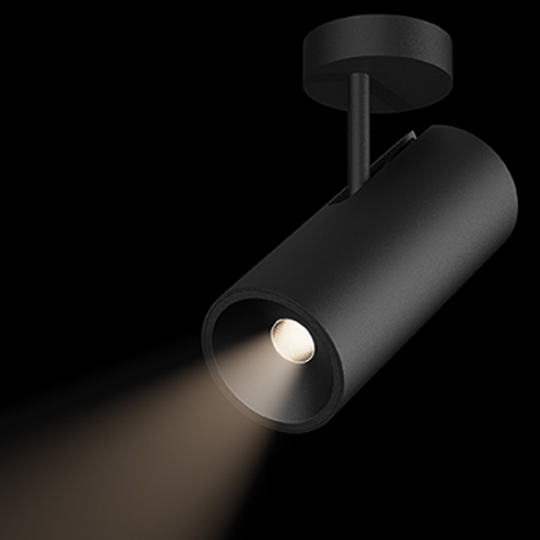

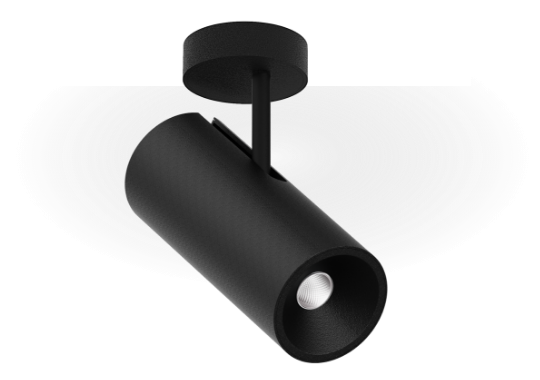

Over is the spotlight featuring a deep-set high-definition Lightcore optic micro-reflector, allowing comfortable light while controlling glare.

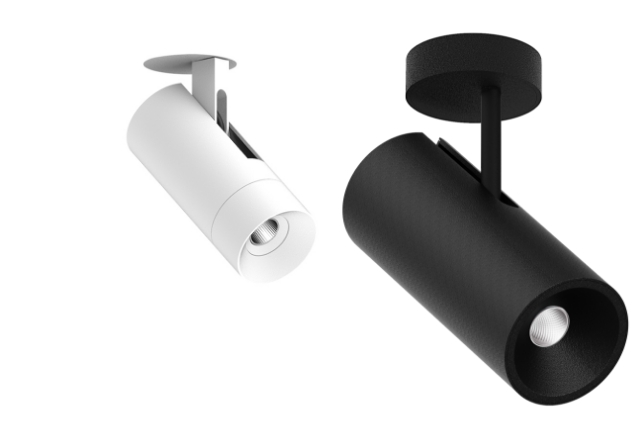

Surface or track-mounted, It contains a driver and components in a single compact unit, perfect for galleries, restaurants, retail, and more.

Over

Over is the spotlight featuring a deep-set high-definition Lightcore optic micro-reflector, allowing comfortable light while controlling glare.
Surface or track-mounted, It contains a driver and components in a single compact unit, perfect for galleries, restaurants, retail, and more.

/ Select an option for more details

Ø45mm
CRI >90 2700K, 3000K, 4000K
>50.000h, L80/B10 | 2-step MacAdam | IP20
Track 48Vdc | Recessed 230Vac; 50/60Hz |
Spot 15º | Medium 41° | Flood 59°

Ø85mm
CRI >90 2700K, 3000K, CRI >80 4000K
>50.000h, L80/B10 | 2-step MacAdam | IP20
Track  230Vac; 50/60Hz | Surface 230Vac; 50/60Hz
Spot 15° | Medium 41° | Flood 59°

Customisable
Accessories can be quickly applied to the aluminium body, customizing the light effect.


Different Applications
Over can serve alone on a ceiling, or integrate O/M’s new architectural lighting system Sys.


Industry standard

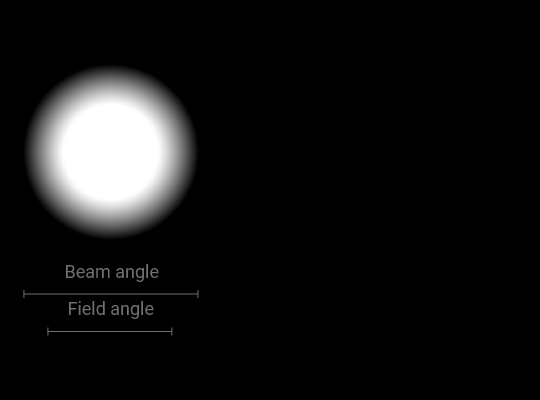

The lighting industry defines that the beam angle is the angle which contains 50% of the luminous intensity of the light beam.
The field angle ends where the luminous intensity lowers to 10% of its maximum.

Exclusively for O/M by Bartenbach GmbH

Lightcore micro-reflector concentrates 90% of the maximum luminous intensity within the beam angle. The result is a defined beam with no light spill. These characteristics allow you to design with maximum accuracy.


Adjustable
Ø45mm: rotation up to 150º on the horizontal and 360° on the vertical axes.
Ø85mm: rotation up to 90º on the horizontal and 330° on the vertical axes.

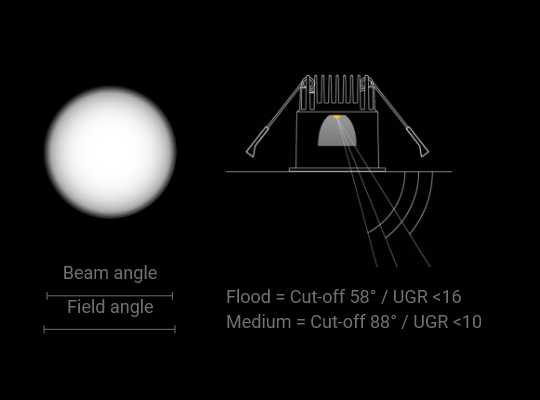

Maximum Cut-off
A defined spotlight with Lightcore’s flagship <10 UGR.



Body
Die-cast aluminium body with electrostatic 100% polyester paint finish. Orientable by 90° or 150° horizontal axis and 330° or 360° vertical axis.


Optics
Lightcore micro surfaces with complex geometry are coated with aluminium alloy, creating a high-gloss mirrored surface. Accurate reflector achieving maximum efficiency.
Developed in partnership with Bartenbach GmbH.
Spot-lens with individual complex surface rips to provide a focal light and an extremely narrow beam.


Light Source
O/M LED modules with excellent colour consistency (2 step-MacAdam) and long operating lifespan (>50.000h; L80/B10). LED CRI>90 2700K, 3000K; CRI>80 4000K.


Power Supply
Driver On/Off or DALI included or to be ordered separately.

Finishes

Over is available in White (.01) and Black (.02).

.01 White
.02 Black
Finishes
.02 Black
Finishes
.01 White
Finishes
.02 Black
Finishes
.01 White
