We use cookies on this site to enhance your experience. Find out more here.As if by magic, Tua’s asymmetric optic projects light far and wide, with no glare whatsoever.
Forget the standard and deploy Tua Optic, a compact, discreet source that can be hidden almost anywhere.
Designed to integrate nature
Developed with the renowned architect Eduardo Souto de Moura for the Foz Tua Dam in Portugal located in a natural park.

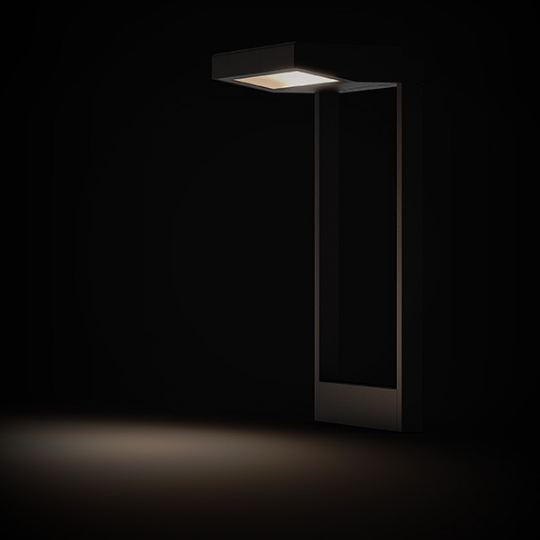

Tua is an exterior luminaire created to withstand the test of time. This aluminium floorwasher has an anti-corrosion treatment and textured-paint finish suitable for adverse climate conditions and is available in two versions: Tua and Tua Optic.
No Glare
Great light and projection uniformity, without glare. Asymmetrical light distribution, guaranteeing 15 lux in an area of 4x8m (transverse version) and 15lx in an area of 8x2m (longitudinal version).
The secret
Tua’s effectiveness is in the design of its optical system, allowing for vast light projection and uniformity, without glare. The simplicity of its form provides smooth integration in architectural features.
Tua Longitudinal effect with acrylic lenses (900mm height)
Illuminated area: 8x2m / Emed: 15lx in compliance with Class P1
Standard EN-1321:2015
Tua Longitudinal on a pathway
Tua Transverse with reflector optic (900mm height)
Illuminated area: 4x8m / Emed: 15lx in compliance with Class P1
Standard EN-1321:2015
Tua Transverse on a pathway
Body
Aluminium body with anti-corrosion treatment and textured electrostatic 100% polyester paint finish suitable for adverse climate conditions.
Diffuser
Tempered clear glass diffuser.
Optics
Tua Transverse with aluminium reflector with 97% reflection and Tua Longitudinal with asymmetric lenses, ensuring high efficiency and uniform light distribution.
Accessories
Connection accessory IP65 for
pass-through wiring included.
Light Source
O/M LED modules with excellent
colour consistency (2 stepMacAdam) and long operating lifespan (>50.000h; L80/B10). LED CRI>90 2700K, 3000K; CRI>80 4000K.
Power Supply
Drivers On/Off or DALI included.
Tua is available in White (.01), Black (.02), Graphite Black (.33) and Rust (.34).
.01 White
.02 Black
.33 Graphite Black
.34 Rust
