Uw
Recessed
/ About Uw Recessed
Design: O/M + Bartenbach GmbH

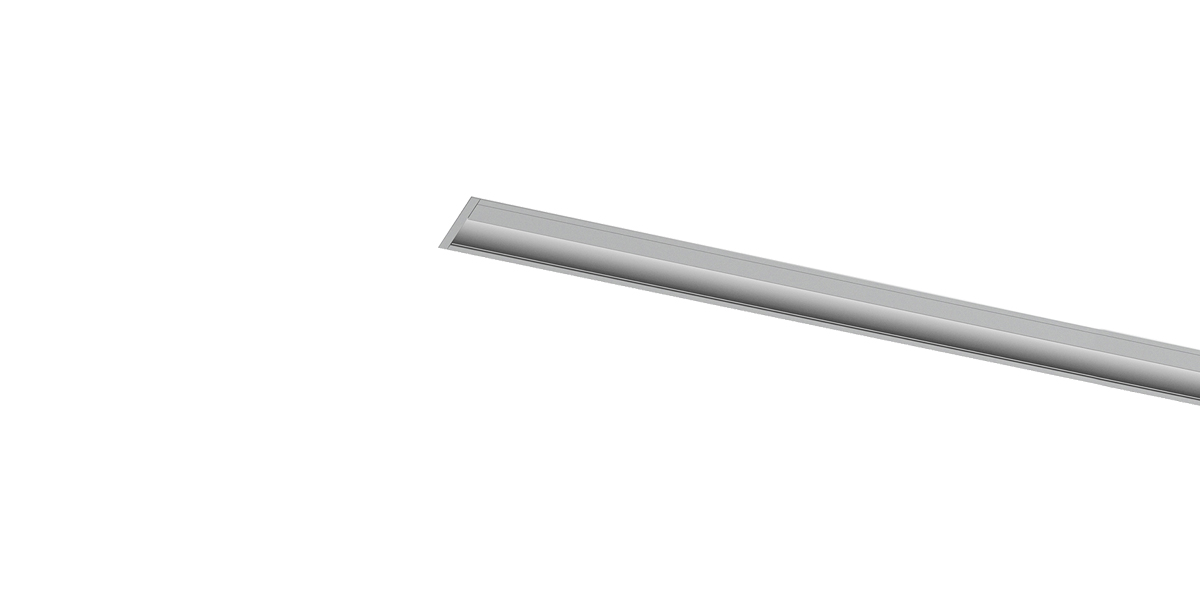

Recessed wallwasher luminaire with housing made of aluminium profile with 25micron maximum corrosion resistance anodization with matt finish or with textured electrostatic 100% polyester paint.
Aluminium anodised end caps with matt finish or electrostatic 100% polyester paint with textured-finish.
Asymmetrical aluminium reflector.
Fitting accessories ordered separately.
Light Effect
Wallwasher
Finishes
.01 White
.02 Black
.10 Anodised aluminium/ Filter Options
/ Uw Recessed
No results were found
Color Temperature
Luminaire Dimension
Beam Angle
Light Source Power
UGR
Light Source Flux
Luminaire Flux
On/Off Code
DALI Code
| Color Temperature | Luminaire Dimension | Beam Angle | Light Source Power | UGR | Light Source Flux | Luminaire Flux | On/Off Code | DALI Code |
|---|---|---|---|---|---|---|---|---|
| 2700K | 615mm | Wallwasher | 16W | - | 1600lm | 740lm | 60562 | 60565 |
| 2700K | 1215mm | Wallwasher | 32W | - | 3200lm | 1450lm | 60563 | 60566 |
| 2700K | 2415mm | Wallwasher | 64W | - | 6400lm | 2900lm | 60564 | 60567 |
| 3000K | 615mm | Wallwasher | 16W | - | 1600lm | 740lm | 60568 | 60571 |
| 3000K | 1215mm | Wallwasher | 32W | - | 3200lm | 1450lm | 60569 | 60572 |
| 3000K | 2415mm | Wallwasher | 64W | - | 6400lm | 2900lm | 60570 | 60573 |
| 4000K | 615mm | Wallwasher | 16W | - | 2240lm | 1000lm | 60574 | 60577 |
| 4000K | 1215mm | Wallwasher | 32W | - | 4480lm | 2050lm | 60575 | 60578 |
| 4000K | 2415mm | Wallwasher | 64W | - | 8960lm | 4100lm | 60576 | 60579 |
| 2200K-5000K | 615mm | Wallwasher | 8W* | - | 860lm* | 390lm* | 60598 | |
| 2200K-5000K | 1215mm | Wallwasher | 16W* | - | 1720lm* | 790lm* | 60599 |
* 3000K values
| On/Off Code | DALI Code | |
|---|---|---|
| 2700K / 615mm / Wallwasher / 16W / - / 740lm | 60562 | 60565 |
| 2700K / 1215mm / Wallwasher / 32W / - / 1450lm | 60563 | 60566 |
| 2700K / 2415mm / Wallwasher / 64W / - / 2900lm | 60564 | 60567 |
| 3000K / 615mm / Wallwasher / 16W / - / 740lm | 60568 | 60571 |
| 3000K / 1215mm / Wallwasher / 32W / - / 1450lm | 60569 | 60572 |
| 3000K / 2415mm / Wallwasher / 64W / - / 2900lm | 60570 | 60573 |
| 4000K / 615mm / Wallwasher / 16W / - / 1000lm | 60574 | 60577 |
| 4000K / 1215mm / Wallwasher / 32W / - / 2050lm | 60575 | 60578 |
| 4000K / 2415mm / Wallwasher / 64W / - / 4100lm | 60576 | 60579 |
| 2200K-5000K / 615mm / Wallwasher / 8W* / - / 390lm* | 60598 | |
| 2200K-5000K / 1215mm / Wallwasher / 16W* / - / 790lm* | 60599 |
* 3000K values
