U35
Surface/Pendant
Products > Linear > U35 > U35 Surface/Pendant
U35
Surface/Pendant

/ About U35 Surface/Pendant

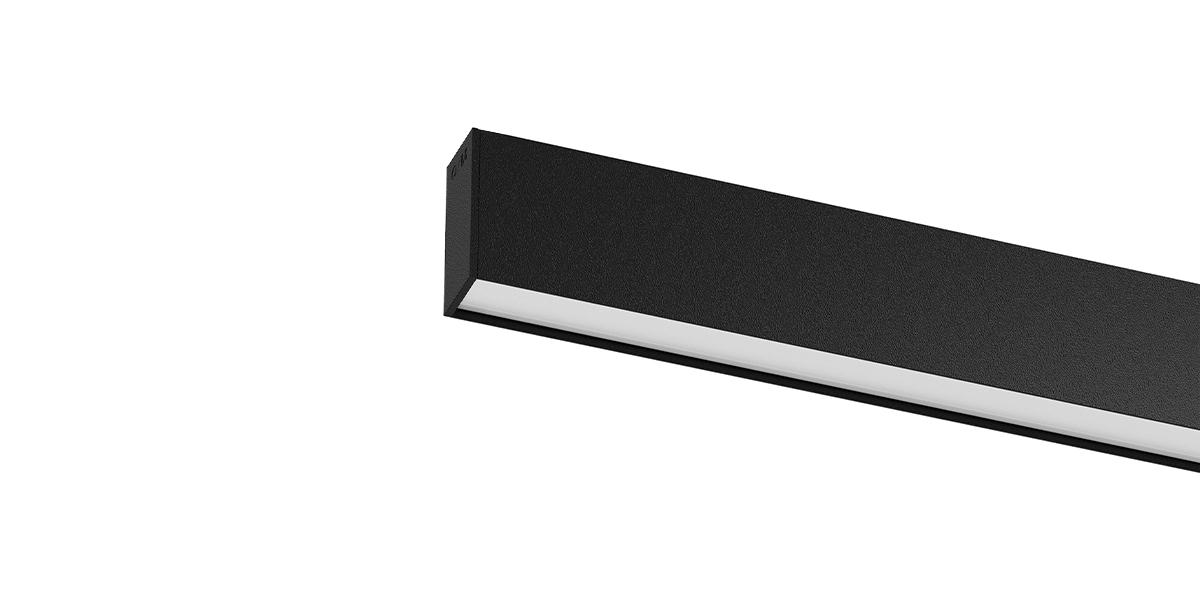

Surface or pendant luminaire with housing made of aluminium profile with 25micron maximum corrosion resistance anodization with matt finish or with textured electrostatic 100% polyester paint.
Frosted polycarbonate diffuser with user friendly clipping system and double fitting system: flushed or recessed.
Aluminium anodised end caps with matt finish or electrostatic 100% polyester paint with textured-finish.
Fitting accessories ordered separately.


Light Effect
Diffuse
Finishes
.01 White
.02 Black
.10 Anodised aluminium

/ Filter Options

/ U35
Surface/Pendant

No results were found
Color Temperature
Luminaire Dimension
Beam Angle
Light Source Power
UGR
Light Source Flux
Luminaire Flux
On/Off Code
DALI Code
Color Temperature Luminaire Dimension Beam Angle Light Source Power UGR Light Source Flux Luminaire Flux On/Off Code DALI Code
2700K 1149mm Diffuse 16W <25 2800lm 1420lm 60802 60810
2700K 1149mm Diffuse 27W <28 4780lm 2430lm 60803 60811
2700K 1429mm Diffuse 20W <25 3500lm 1775lm 60804 60812
2700K 1429mm Diffuse 34W <28 5975lm 3040lm 60805 60813
2700K 2271mm Diffuse 32W <25 5600lm 2840lm 60806 60814
2700K 2271mm Diffuse 54W <28 9560lm 4860lm 60807 60815
2700K 2831mm Diffuse 40W <25 7000lm 3550lm 60808 60816
2700K 2831mm Diffuse 68W <28 11950lm 6080lm 60809 60817
3000K 1149mm Diffuse 16W <25 2860lm 1460lm 60818 60826
3000K 1149mm Diffuse 27W <28 4900lm 2500lm 60819 60827
3000K 1429mm Diffuse 20W <25 3575lm 1825lm 60820 60828
3000K 1429mm Diffuse 34W <28 6125lm 3125lm 60821 60829
3000K 2271mm Diffuse 32W <25 5720lm 2920lm 60822 60830
3000K 2271mm Diffuse 54W <28 9800lm 5000lm 60823 60831
3000K 2831mm Diffuse 40W <25 7150lm 3650lm 60824 60832
3000K 2831mm Diffuse 68W <28 12250lm 6250lm 60825 60833
4000K 1149mm Diffuse 16W <25 3020lm 1540lm 60834 60842
4000K 1149mm Diffuse 27W <28 5200lm 2640lm 60835 60843
4000K 1429mm Diffuse 20W <25 3775lm 1925lm 60836 60844
4000K 1429mm Diffuse 34W <28 6500lm 3300lm 60837 60845
4000K 2271mm Diffuse 32W <25 6040lm 3080lm 60838 60846
4000K 2271mm Diffuse 54W <28 10400lm 5280lm 60839 60847
4000K 2831mm Diffuse 40W <25 7550lm 3850lm 60840 60848
4000K 2831mm Diffuse 68W <28 13000lm 6600lm 60841 60849
 On/Off CodeDALI Code
2700K / 1149mm / Diffuse / 16W / <25 / 1420lm 60802 60810
2700K / 1149mm / Diffuse / 27W / <28 / 2430lm 60803 60811
2700K / 1429mm / Diffuse / 20W / <25 / 1775lm 60804 60812
2700K / 1429mm / Diffuse / 34W / <28 / 3040lm 60805 60813
2700K / 2271mm / Diffuse / 32W / <25 / 2840lm 60806 60814
2700K / 2271mm / Diffuse / 54W / <28 / 4860lm 60807 60815
2700K / 2831mm / Diffuse / 40W / <25 / 3550lm 60808 60816
2700K / 2831mm / Diffuse / 68W / <28 / 6080lm 60809 60817
3000K / 1149mm / Diffuse / 16W / <25 / 1460lm 60818 60826
3000K / 1149mm / Diffuse / 27W / <28 / 2500lm 60819 60827
3000K / 1429mm / Diffuse / 20W / <25 / 1825lm 60820 60828
3000K / 1429mm / Diffuse / 34W / <28 / 3125lm 60821 60829
3000K / 2271mm / Diffuse / 32W / <25 / 2920lm 60822 60830
3000K / 2271mm / Diffuse / 54W / <28 / 5000lm 60823 60831
3000K / 2831mm / Diffuse / 40W / <25 / 3650lm 60824 60832
3000K / 2831mm / Diffuse / 68W / <28 / 6250lm 60825 60833
4000K / 1149mm / Diffuse / 16W / <25 / 1540lm 60834 60842
4000K / 1149mm / Diffuse / 27W / <28 / 2640lm 60835 60843
4000K / 1429mm / Diffuse / 20W / <25 / 1925lm 60836 60844
4000K / 1429mm / Diffuse / 34W / <28 / 3300lm 60837 60845
4000K / 2271mm / Diffuse / 32W / <25 / 3080lm 60838 60846
4000K / 2271mm / Diffuse / 54W / <28 / 5280lm 60839 60847
4000K / 2831mm / Diffuse / 40W / <25 / 3850lm 60840 60848
4000K / 2831mm / Diffuse / 68W / <28 / 6600lm 60841 60849
