Tua Optic
/ About Tua Optic
Design: Eduardo Souto de Moura

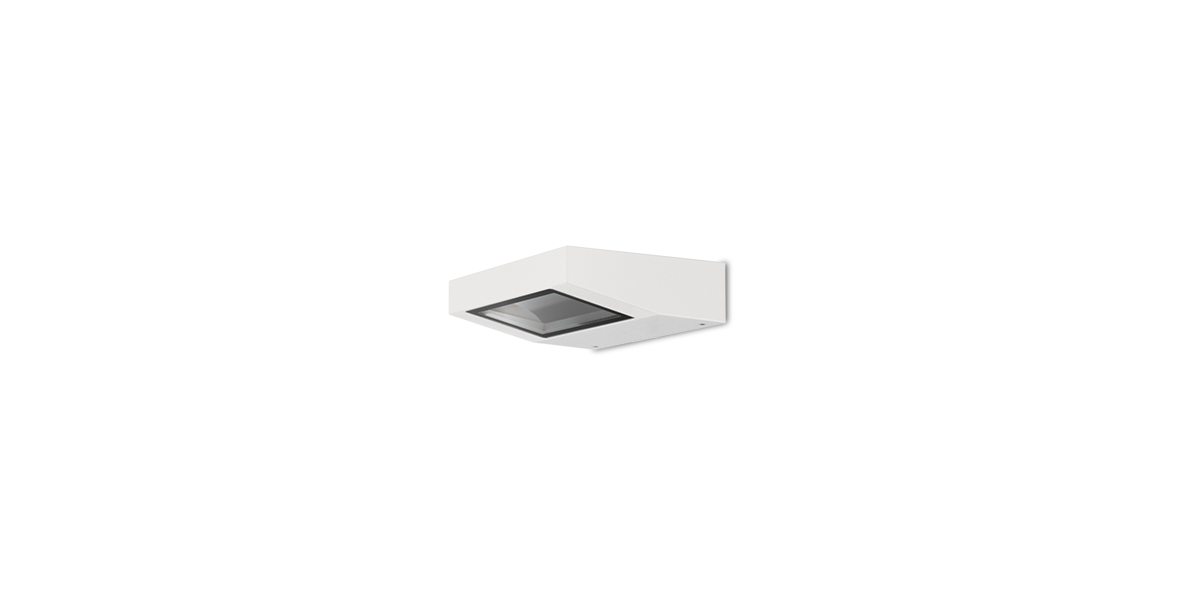

Outdoor luminaire in aluminium body with anti-corrosion treatment and textured electrostatic 100% polyester paint finish.
Clear glass diffuser.
Fitting accessory available separately.
Light Effect
Elliptical longitudinal
Elliptical transverse
Finishes
.01 White
.02 Black
.33 Graphite Black
.34 Rust/ Filter Options
/ Tua Optic
No results were found
Color Temperature
Luminaire Dimension
Beam Angle
Light Source Power
UGR
Light Source Flux
Luminaire Flux
On/Off Code
DALI Code
| Color Temperature | Luminaire Dimension | Beam Angle | Light Source Power | UGR | Light Source Flux | Luminaire Flux | On/Off Code | DALI Code |
|---|---|---|---|---|---|---|---|---|
| 2700K | 252x200x65mm | Elliptical transverse | 6,2W | - | 670lm | 240lm | 64594 | 64597 |
| 2700K | 252x200x65mm | Elliptical longitudinal | 7,3W | - | 700lm | 370lm | 64600 | 64603 |
| 3000K | 252x200x65mm | Elliptical transverse | 6,2W | - | 700lm | 250lm | 64595 | 64598 |
| 3000K | 252x200x65mm | Elliptical longitudinal | 7,3W | - | 730lm | 380lm | 64601 | 64604 |
| 4000K | 252x200x65mm | Elliptical transverse | 6,2W | - | 870lm | 310lm | 64596 | 64599 |
| 4000K | 252x200x65mm | Elliptical longitudinal | 7,3W | - | 910lm | 480lm | 64602 | 64605 |
| On/Off Code | DALI Code | |
|---|---|---|
| 2700K / 252x200x65mm / Elliptical transverse / 6,2W / - / 240lm | 64594 | 64597 |
| 2700K / 252x200x65mm / Elliptical longitudinal / 7,3W / - / 370lm | 64600 | 64603 |
| 3000K / 252x200x65mm / Elliptical transverse / 6,2W / - / 250lm | 64595 | 64598 |
| 3000K / 252x200x65mm / Elliptical longitudinal / 7,3W / - / 380lm | 64601 | 64604 |
| 4000K / 252x200x65mm / Elliptical transverse / 6,2W / - / 310lm | 64596 | 64599 |
| 4000K / 252x200x65mm / Elliptical longitudinal / 7,3W / - / 480lm | 64602 | 64605 |
