Onit
Track (230v)
/ About Onit Track (230v)
Design: O/M

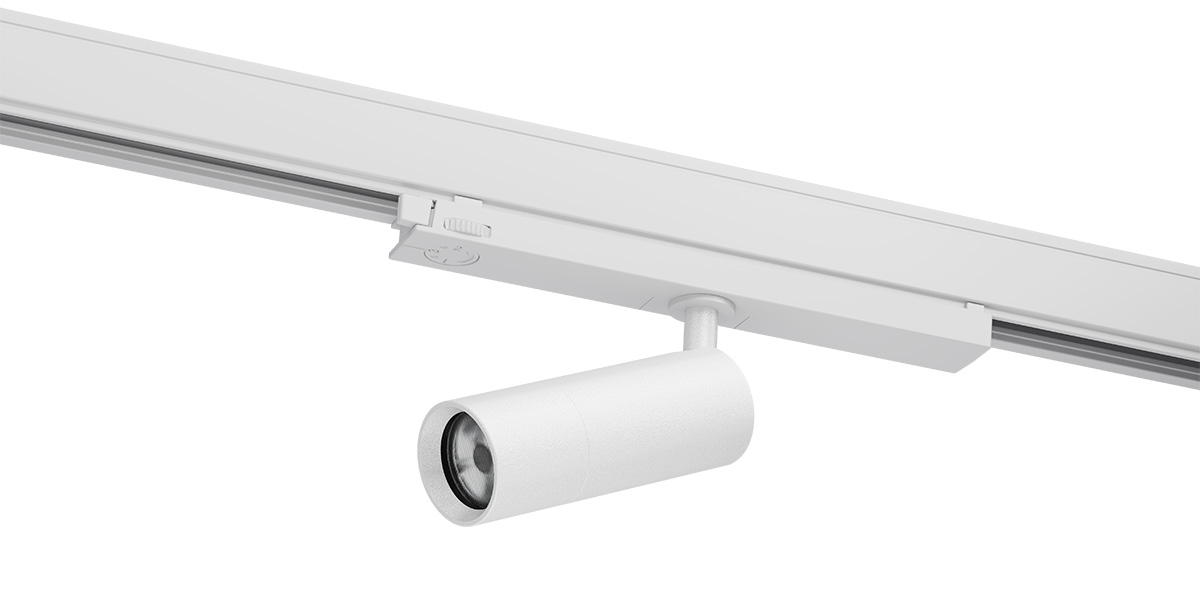

Adjustable spotlight with aluminium body for installation on three-phase track.
The spotlight can be rotated up to 90° horizontally and 330° vertically.
Accessories available separately and easily applicable after installation.
Light Effect
Spot
Medium
Finishes
.01 White
.02 Black/ Filter Options
/ Onit Track (230v)
No results were found
Color Temperature
Luminaire Dimension
Beam Angle
Light Source Power
UGR
Light Source Flux
Luminaire Flux
On/Off Code
DALI Code
| Color Temperature | Luminaire Dimension | Beam Angle | Light Source Power | UGR | Light Source Flux | Luminaire Flux | On/Off Code | DALI Code |
|---|---|---|---|---|---|---|---|---|
| 2700K | ø45mm | Spot 12° | 10W | <13 | 955lm | 780lm | 60316 | 60318 |
| 2700K | ø45mm | Medium 28° | 10W | <16 | 955lm | 720lm | 60317 | 60319 |
| 3000K | ø45mm | Spot 12° | 10W | <13 | 1035lm | 910lm | 60320 | 60322 |
| 3000K | ø45mm | Medium 28° | 10W | <16 | 1035lm | 810lm | 60321 | 60323 |
| 4000K | ø45mm | Spot 12° | 10W | <13 | 1240lm | 1110lm | 60324 | 63138 |
| 4000K | ø45mm | Medium 28° | 10W | <16 | 1240lm | 990lm | 60325 | 63139 |
| On/Off Code | DALI Code | |
|---|---|---|
| 2700K / ø45mm / Spot 12° / 10W / <13 / 780lm | 60316 | 60318 |
| 2700K / ø45mm / Medium 28° / 10W / <16 / 720lm | 60317 | 60319 |
| 3000K / ø45mm / Spot 12° / 10W / <13 / 910lm | 60320 | 60322 |
| 3000K / ø45mm / Medium 28° / 10W / <16 / 810lm | 60321 | 60323 |
| 4000K / ø45mm / Spot 12° / 10W / <13 / 1110lm | 60324 | 63138 |
| 4000K / ø45mm / Medium 28° / 10W / <16 / 990lm | 60325 | 63139 |
