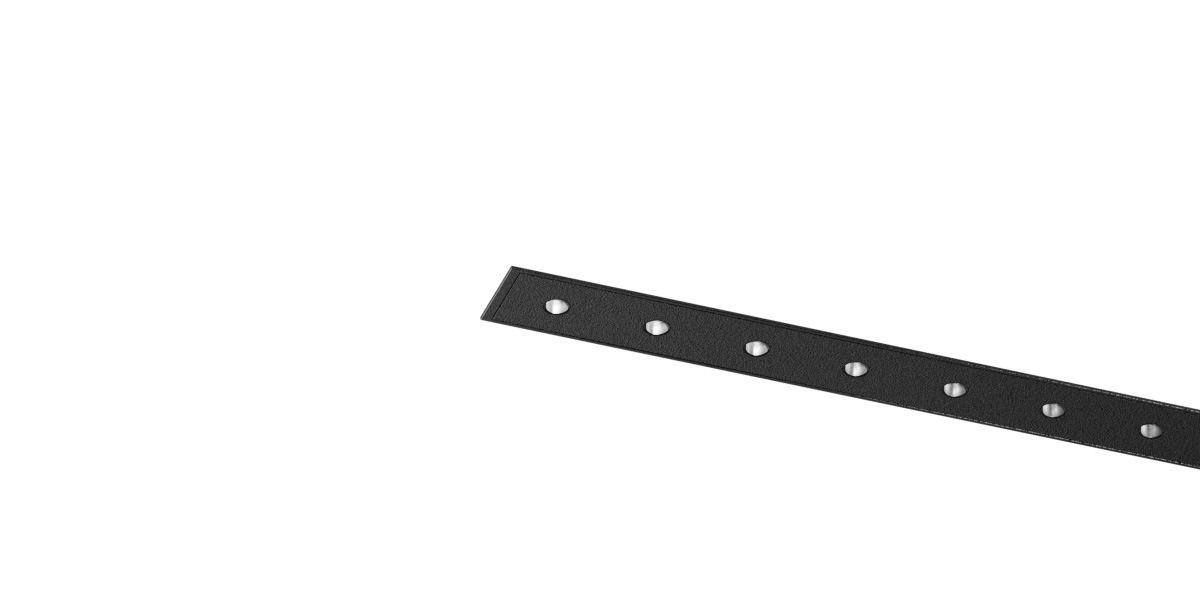

inVision45
Recessed Wallwasher
/ About inVision45 Recessed Wallwasher
Finishes
.01 White
.02 Black/ Filter Options
/ inVision45 Recessed Wallwasher
No results were found
Color Temperature
Luminaire Dimension
Beam Angle
Light Source Power
UGR
Light Source Flux
Luminaire Flux
On/Off Code
DALI Code
| Color Temperature | Luminaire Dimension | Beam Angle | Light Source Power | UGR | Light Source Flux | Luminaire Flux | On/Off Code | DALI Code |
|---|---|---|---|---|---|---|---|---|
| 2700K | 615mm | Wallwasher | 13W | - | 1205lm | 915lm | 65476 | 65488 |
| 2700K | 615mm | Wallwasher | 26W | - | 2410lm | 1830lm | 65477 | 65489 |
| 2700K | 915mm | Wallwasher | 19W | - | 1810lm | 1375lm | 65480 | 65492 |
| 2700K | 915mm | Wallwasher | 38W | - | 3620lm | 2750lm | 65481 | 65493 |
| 2700K | 1215mm | Wallwasher | 26W | - | 2410lm | 1830lm | 65484 | 65496 |
| 2700K | 1215mm | Wallwasher | 51W | - | 4825lm | 3665lm | 65485 | 65497 |
| 3000K | 615mm | Wallwasher | 13W | - | 1285lm | 975lm | 65500 | 65512 |
| 3000K | 615mm | Wallwasher | 26W | - | 2570lm | 1955lm | 65501 | 65513 |
| 3000K | 915mm | Wallwasher | 19W | - | 1925lm | 1465lm | 65504 | 65516 |
| 3000K | 915mm | Wallwasher | 38W | - | 3850lm | 2925lm | 65505 | 65517 |
| 3000K | 1215mm | Wallwasher | 26W | - | 2570lm | 1955lm | 65508 | 65520 |
| 3000K | 1215mm | Wallwasher | 51W | - | 5135lm | 3900lm | 65509 | 65521 |
| 4000K | 615mm | Wallwasher | 13W | - | 1420lm | 1080lm | 65524 | 65536 |
| 4000K | 615mm | Wallwasher | 26W | - | 2845lm | 2160lm | 65525 | 65537 |
| 4000K | 915mm | Wallwasher | 19W | - | 2135lm | 1620lm | 65528 | 65540 |
| 4000K | 915mm | Wallwasher | 38W | - | 4265lm | 3240lm | 65529 | 65541 |
| 4000K | 1215mm | Wallwasher | 26W | - | 2845lm | 2160lm | 65532 | 65544 |
| 4000K | 1215mm | Wallwasher | 51W | - | 5690lm | 4325lm | 65533 | 65545 |
| On/Off Code | DALI Code | |
|---|---|---|
| 2700K / 615mm / Wallwasher / 13W / - / 915lm | 65476 | 65488 |
| 2700K / 615mm / Wallwasher / 26W / - / 1830lm | 65477 | 65489 |
| 2700K / 915mm / Wallwasher / 19W / - / 1375lm | 65480 | 65492 |
| 2700K / 915mm / Wallwasher / 38W / - / 2750lm | 65481 | 65493 |
| 2700K / 1215mm / Wallwasher / 26W / - / 1830lm | 65484 | 65496 |
| 2700K / 1215mm / Wallwasher / 51W / - / 3665lm | 65485 | 65497 |
| 3000K / 615mm / Wallwasher / 13W / - / 975lm | 65500 | 65512 |
| 3000K / 615mm / Wallwasher / 26W / - / 1955lm | 65501 | 65513 |
| 3000K / 915mm / Wallwasher / 19W / - / 1465lm | 65504 | 65516 |
| 3000K / 915mm / Wallwasher / 38W / - / 2925lm | 65505 | 65517 |
| 3000K / 1215mm / Wallwasher / 26W / - / 1955lm | 65508 | 65520 |
| 3000K / 1215mm / Wallwasher / 51W / - / 3900lm | 65509 | 65521 |
| 4000K / 615mm / Wallwasher / 13W / - / 1080lm | 65524 | 65536 |
| 4000K / 615mm / Wallwasher / 26W / - / 2160lm | 65525 | 65537 |
| 4000K / 915mm / Wallwasher / 19W / - / 1620lm | 65528 | 65540 |
| 4000K / 915mm / Wallwasher / 38W / - / 3240lm | 65529 | 65541 |
| 4000K / 1215mm / Wallwasher / 26W / - / 2160lm | 65532 | 65544 |
| 4000K / 1215mm / Wallwasher / 51W / - / 4325lm | 65533 | 65545 |
