inVision35
Recessed Wallwasher
/ About inVision35 Recessed Wallwasher
Finishes

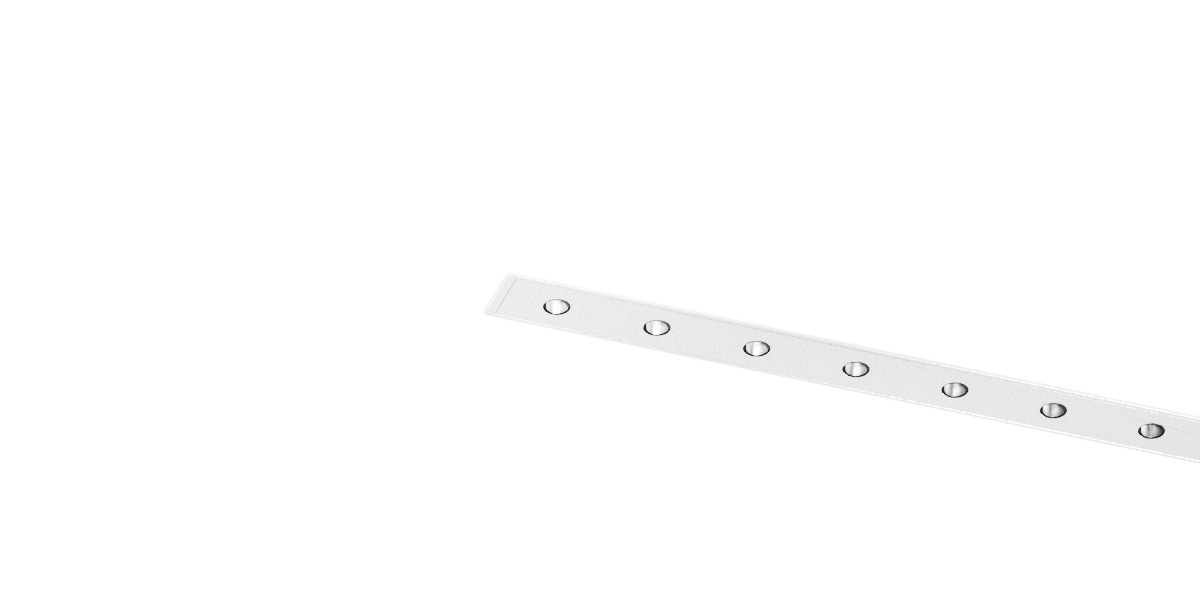

.01 White

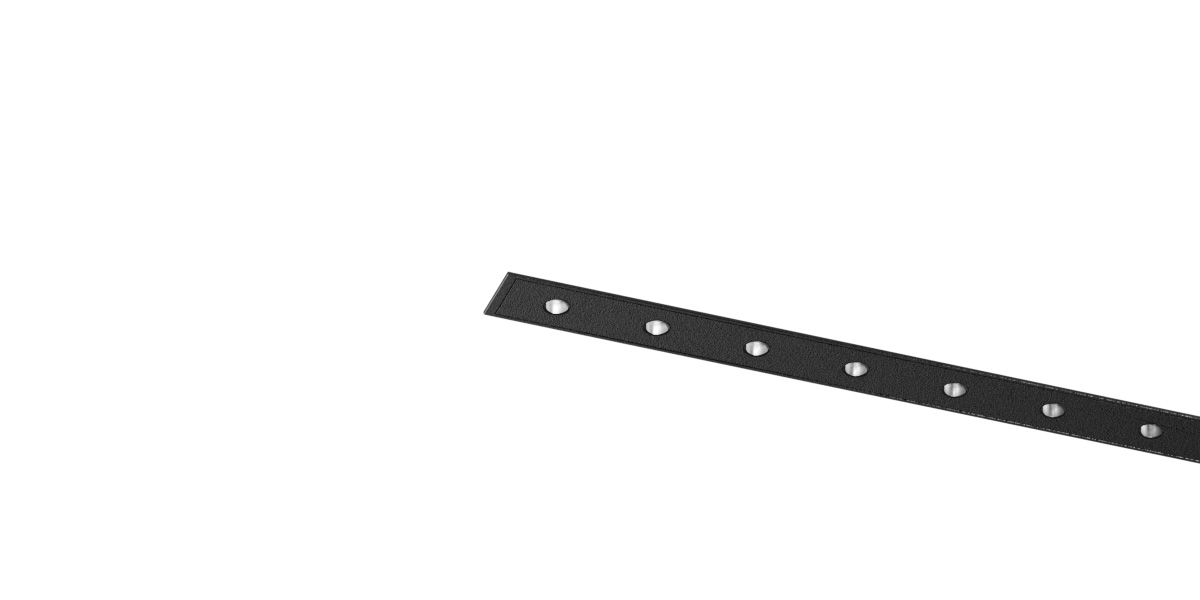

.02 Black/ Filter Options
/ inVision35 Recessed Wallwasher
No results were found
Color Temperature
Luminaire Dimension
Beam Angle
Light Source Power
UGR
Light Source Flux
Luminaire Flux
On/Off Code
DALI Code
| Color Temperature | Luminaire Dimension | Beam Angle | Light Source Power | UGR | Light Source Flux | Luminaire Flux | On/Off Code | DALI Code |
|---|---|---|---|---|---|---|---|---|
| 2700K | 611mm | Wallwasher | 13W | - | 1205lm | 915lm | 65260 | 65272 |
| 2700K | 611mm | Wallwasher | 26W | - | 2410lm | 1830lm | 65261 | 65273 |
| 2700K | 911mm | Wallwasher | 19W | - | 1810lm | 1375lm | 65264 | 65276 |
| 2700K | 911mm | Wallwasher | 38W | - | 3620lm | 2750lm | 65265 | 65277 |
| 2700K | 1211mm | Wallwasher | 26W | - | 2410lm | 1830lm | 65268 | 65280 |
| 2700K | 1211mm | Wallwasher | 51W | - | 4825lm | 3665lm | 65269 | 65281 |
| 3000K | 611mm | Wallwasher | 13W | - | 1285lm | 975lm | 65284 | 65296 |
| 3000K | 611mm | Wallwasher | 26W | - | 2570lm | 1955lm | 65285 | 65297 |
| 3000K | 911mm | Wallwasher | 19W | - | 1925lm | 1465lm | 65288 | 65300 |
| 3000K | 911mm | Wallwasher | 38W | - | 3850lm | 2925lm | 65289 | 65301 |
| 3000K | 1211mm | Wallwasher | 26W | - | 2570lm | 1955lm | 65292 | 65304 |
| 3000K | 1211mm | Wallwasher | 51W | - | 5135lm | 3900lm | 65293 | 65305 |
| 4000K | 611mm | Wallwasher | 13W | - | 1420lm | 1080lm | 65308 | 65320 |
| 4000K | 611mm | Wallwasher | 26W | - | 2845lm | 2160lm | 65309 | 65321 |
| 4000K | 911mm | Wallwasher | 19W | - | 2135lm | 1620lm | 65312 | 65324 |
| 4000K | 911mm | Wallwasher | 38W | - | 4265lm | 3240lm | 65313 | 65325 |
| 4000K | 1211mm | Wallwasher | 26W | - | 2845lm | 2160lm | 65316 | 65328 |
| 4000K | 1211mm | Wallwasher | 51W | - | 5690lm | 4325lm | 65317 | 65329 |
| On/Off Code | DALI Code | |
|---|---|---|
| 2700K / 611mm / Wallwasher / 13W / - / 915lm | 65260 | 65272 |
| 2700K / 611mm / Wallwasher / 26W / - / 1830lm | 65261 | 65273 |
| 2700K / 911mm / Wallwasher / 19W / - / 1375lm | 65264 | 65276 |
| 2700K / 911mm / Wallwasher / 38W / - / 2750lm | 65265 | 65277 |
| 2700K / 1211mm / Wallwasher / 26W / - / 1830lm | 65268 | 65280 |
| 2700K / 1211mm / Wallwasher / 51W / - / 3665lm | 65269 | 65281 |
| 3000K / 611mm / Wallwasher / 13W / - / 975lm | 65284 | 65296 |
| 3000K / 611mm / Wallwasher / 26W / - / 1955lm | 65285 | 65297 |
| 3000K / 911mm / Wallwasher / 19W / - / 1465lm | 65288 | 65300 |
| 3000K / 911mm / Wallwasher / 38W / - / 2925lm | 65289 | 65301 |
| 3000K / 1211mm / Wallwasher / 26W / - / 1955lm | 65292 | 65304 |
| 3000K / 1211mm / Wallwasher / 51W / - / 3900lm | 65293 | 65305 |
| 4000K / 611mm / Wallwasher / 13W / - / 1080lm | 65308 | 65320 |
| 4000K / 611mm / Wallwasher / 26W / - / 2160lm | 65309 | 65321 |
| 4000K / 911mm / Wallwasher / 19W / - / 1620lm | 65312 | 65324 |
| 4000K / 911mm / Wallwasher / 38W / - / 3240lm | 65313 | 65325 |
| 4000K / 1211mm / Wallwasher / 26W / - / 2160lm | 65316 | 65328 |
| 4000K / 1211mm / Wallwasher / 51W / - / 4325lm | 65317 | 65329 |
