inVision35
Made-to-measure
/ About inVision35 Made-to-measure
Design: O/M + Bartenbach GmbH

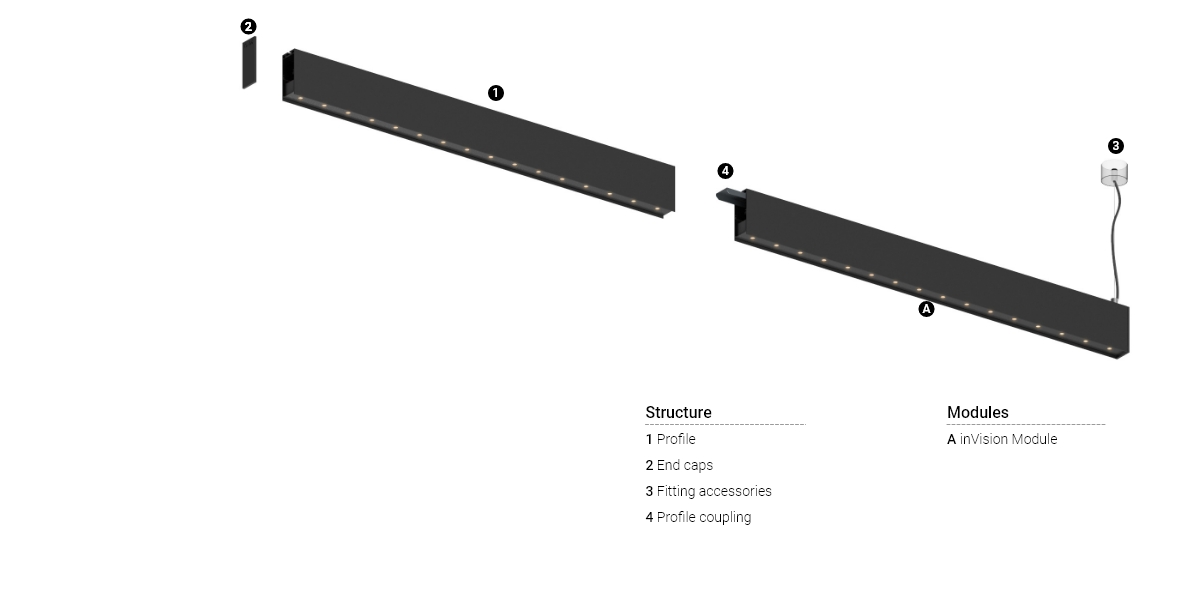

Recessed, surface or pendant luminaire with housing made of aluminium with electrostatic 100% polyester paint with textured finish.
Aluminium anodised end caps with electrostatic 100% polyester paint with textured-finish.
Housing and perforated cover plate made of aluminium with textured-paint finish. With the latest Bartenbach GmbH technology, inVision35 is a discreet solution, that can use great light distribution and visual comfort from a nearly invisible source.
Fitting accessories ordered separately.
Light Effect
Spot
Medium
Flood
Wallwasher
Finishes
.01 White
.02 Black/ Structure
/ Filter Options
/ inVision35 module
No results were found
Color Temperature
Module dimension
Beam Angle
Light Source Power
UGR
Light Source Flux
Luminaire Flux
On/Off Code
DALI Code
| Color Temperature | Module dimension | Beam Angle | Light Source Power | UGR | Light Source Flux | Luminaire Flux | On/Off Code | DALI Code |
|---|---|---|---|---|---|---|---|---|
| 2700K | 600mm | Wallwasher | 13W | - | 1205lm | 915lm | 65404 | 65416 |
| 2700K | 600mm | Wallwasher | 26W | - | 2410lm | 1830lm | 65405 | 65417 |
| 2700K | 600mm | Spot 17° | 13W | <10 | 1205lm | 530lm | 65402 | 65414 |
| 2700K | 600mm | Spot 17° | 26W | <10 | 2250lm | 990lm | 65403 | 65415 |
| 2700K | 600mm | Medium 31° | 14W | <10 | 1200lm | 880lm | 60934 | 60942 |
| 2700K | 600mm | Medium 31° | 26W | <10 | 2400lm | 1740lm | 60935 | 60943 |
| 2700K | 600mm | Flood 52° | 14W | <13 | 1200lm | 920lm | 60936 | 60944 |
| 2700K | 600mm | Flood 52° | 26W | <16 | 2400lm | 1820lm | 60937 | 60945 |
| 2700K | 900mm | Wallwasher | 19W | - | 1810lm | 1375lm | 65408 | 65420 |
| 2700K | 900mm | Wallwasher | 38W | - | 3620lm | 2750lm | 65409 | 65421 |
| 2700K | 900mm | Spot 17° | 19W | <10 | 1810lm | 795lm | 65406 | 65418 |
| 2700K | 900mm | Spot 17° | 38W | <10 | 3375lm | 1485lm | 65407 | 65419 |
| 2700K | 900mm | Medium 31° | 21W | <10 | 1800lm | 1320lm | 63996 | 64000 |
| 2700K | 900mm | Medium 31° | 39W | <10 | 3600lm | 2610lm | 63997 | 64001 |
| 2700K | 900mm | Flood 52° | 21W | <13 | 1800lm | 1380lm | 63998 | 64002 |
| 2700K | 900mm | Flood 52° | 39W | <16 | 3600lm | 2730lm | 63999 | 64003 |
| 2700K | 1200mm | Wallwasher | 26W | - | 2410lm | 1830lm | 65412 | 65424 |
| 2700K | 1200mm | Wallwasher | 51W | - | 4825lm | 3665lm | 65413 | 65425 |
| 2700K | 1200mm | Spot 17° | 26W | <10 | 2410lm | 1060lm | 65410 | 65422 |
| 2700K | 1200mm | Spot 17° | 51W | <10 | 4500lm | 1980lm | 65411 | 65423 |
| 2700K | 1200mm | Medium 31° | 27W | <10 | 2400lm | 1760lm | 60938 | 60946 |
| 2700K | 1200mm | Medium 31° | 52W | <10 | 4800lm | 3480lm | 60939 | 60947 |
| 2700K | 1200mm | Flood 52° | 27W | <13 | 2400lm | 1840lm | 60940 | 60948 |
| 2700K | 1200mm | Flood 52° | 52W | <16 | 4800lm | 3640lm | 60941 | 60949 |
| 3000K | 600mm | Wallwasher | 13W | - | 1285lm | 975lm | 65428 | 65440 |
| 3000K | 600mm | Wallwasher | 26W | - | 2570lm | 1955lm | 65429 | 65441 |
| 3000K | 600mm | Spot 17° | 13W | <10 | 1285lm | 565lm | 65426 | 65438 |
| 3000K | 600mm | Spot 17° | 26W | <10 | 2370lm | 1040lm | 65427 | 65439 |
| 3000K | 600mm | Medium 31° | 14W | <10 | 1290lm | 940lm | 60950 | 60958 |
| 3000K | 600mm | Medium 31° | 26W | <10 | 2580lm | 1880lm | 60951 | 60959 |
| 3000K | 600mm | Flood 52° | 14W | <13 | 1290lm | 980lm | 60952 | 60960 |
| 3000K | 600mm | Flood 52° | 26W | <16 | 2580lm | 1960lm | 60953 | 60961 |
| 3000K | 900mm | Wallwasher | 19W | - | 1925lm | 1465lm | 65432 | 65444 |
| 3000K | 900mm | Wallwasher | 38W | - | 3850lm | 2925lm | 65433 | 65445 |
| 3000K | 900mm | Spot 17° | 19W | <10 | 1925lm | 845lm | 65430 | 65442 |
| 3000K | 900mm | Spot 17° | 38W | <10 | 3555lm | 1565lm | 65431 | 65443 |
| 3000K | 900mm | Medium 31° | 21W | <10 | 1935lm | 1410lm | 64004 | 64008 |
| 3000K | 900mm | Medium 31° | 39W | <10 | 3870lm | 2820lm | 64005 | 64009 |
| 3000K | 900mm | Flood 52° | 21W | <13 | 1935lm | 1470lm | 64006 | 64010 |
| 3000K | 900mm | Flood 52° | 39W | <16 | 3870lm | 2940lm | 64007 | 64011 |
| 3000K | 1200mm | Wallwasher | 26W | - | 2570lm | 1955lm | 65436 | 65448 |
| 3000K | 1200mm | Wallwasher | 51W | - | 5135lm | 3900lm | 65437 | 65449 |
| 3000K | 1200mm | Spot 17° | 26W | <10 | 2570lm | 1130lm | 65434 | 65446 |
| 3000K | 1200mm | Spot 17° | 51W | <10 | 4740lm | 2085lm | 65435 | 65447 |
| 3000K | 1200mm | Medium 31° | 27W | <10 | 2580lm | 1880lm | 60954 | 60962 |
| 3000K | 1200mm | Medium 31° | 52W | <10 | 5160lm | 3760lm | 60955 | 60963 |
| 3000K | 1200mm | Flood 52° | 27W | <13 | 2580lm | 1960lm | 60956 | 60964 |
| 3000K | 1200mm | Flood 52° | 52W | <16 | 5160lm | 3920lm | 60957 | 60965 |
| 4000K | 600mm | Wallwasher | 13W | - | 1420lm | 1080lm | 65452 | 65464 |
| 4000K | 600mm | Wallwasher | 26W | - | 2845lm | 2160lm | 65453 | 65465 |
| 4000K | 600mm | Spot 17° | 13W | <10 | 1420lm | 325lm | 65450 | 65462 |
| 4000K | 600mm | Spot 17° | 26W | <10 | 2640lm | 1160lm | 65451 | 65463 |
| 4000K | 600mm | Medium 31° | 14W | <10 | 1720lm | 1260lm | 60966 | 60974 |
| 4000K | 600mm | Medium 31° | 26W | <10 | 3400lm | 2480lm | 60967 | 60975 |
| 4000K | 600mm | Flood 52° | 14W | <13 | 1720lm | 1300lm | 60968 | 60976 |
| 4000K | 600mm | Flood 52° | 26W | <16 | 3400lm | 2580lm | 60969 | 60977 |
| 4000K | 900mm | Wallwasher | 19W | - | 2135lm | 1620lm | 65456 | 65468 |
| 4000K | 900mm | Wallwasher | 38W | - | 4265lm | 3240lm | 65457 | 65469 |
| 4000K | 900mm | Spot 17° | 19W | <10 | 2135lm | 940lm | 65454 | 65466 |
| 4000K | 900mm | Spot 17° | 38W | <10 | 3960lm | 1740lm | 65455 | 65467 |
| 4000K | 900mm | Medium 31° | 21W | <10 | 2580lm | 1890lm | 64012 | 64016 |
| 4000K | 900mm | Medium 31° | 39W | <10 | 5100lm | 3720lm | 64013 | 64017 |
| 4000K | 900mm | Flood 52° | 21W | <13 | 2580lm | 1950lm | 64014 | 64018 |
| 4000K | 900mm | Flood 52° | 39W | <16 | 5100lm | 3870lm | 64015 | 64019 |
| 4000K | 1200mm | Wallwasher | 26W | - | 2845lm | 2160lm | 65460 | 65472 |
| 4000K | 1200mm | Wallwasher | 51W | - | 5690lm | 4325lm | 65461 | 65473 |
| 4000K | 1200mm | Spot 17° | 26W | <10 | 2845lm | 1250lm | 65458 | 65470 |
| 4000K | 1200mm | Spot 17° | 51W | <10 | 5280lm | 2325lm | 65459 | 65471 |
| 4000K | 1200mm | Medium 31° | 27W | <10 | 3440lm | 2520lm | 60970 | 60978 |
| 4000K | 1200mm | Medium 31° | 52W | <10 | 6800lm | 4960lm | 60971 | 60979 |
| 4000K | 1200mm | Flood 52° | 27W | <13 | 3440lm | 2600lm | 60972 | 60980 |
| 4000K | 1200mm | Flood 52° | 52W | <16 | 6800lm | 5160lm | 60973 | 60981 |
| 2200K-5000K | 600mm | Medium 31° | 23W* | <10 | 1880lm* | 1360lm* | 60982 | |
| 2200K-5000K | 600mm | Flood 52° | 23W* | <16 | 1880lm* | 1420lm* | 60983 | |
| 2200K-5000K | 1200mm | Medium 31° | 46W* | <10 | 3760lm* | 2720lm* | 60984 | |
| 2200K-5000K | 1200mm | Flood 52° | 46W* | <16 | 3760lm* | 2840lm* | 60985 |
* 3000K values
| On/Off Code | DALI Code | |
|---|---|---|
| 2700K / 600mm / Wallwasher / 13W / - / 915lm | 65404 | 65416 |
| 2700K / 600mm / Wallwasher / 26W / - / 1830lm | 65405 | 65417 |
| 2700K / 600mm / Spot 17° / 13W / <10 / 530lm | 65402 | 65414 |
| 2700K / 600mm / Spot 17° / 26W / <10 / 990lm | 65403 | 65415 |
| 2700K / 600mm / Medium 31° / 14W / <10 / 880lm | 60934 | 60942 |
| 2700K / 600mm / Medium 31° / 26W / <10 / 1740lm | 60935 | 60943 |
| 2700K / 600mm / Flood 52° / 14W / <13 / 920lm | 60936 | 60944 |
| 2700K / 600mm / Flood 52° / 26W / <16 / 1820lm | 60937 | 60945 |
| 2700K / 900mm / Wallwasher / 19W / - / 1375lm | 65408 | 65420 |
| 2700K / 900mm / Wallwasher / 38W / - / 2750lm | 65409 | 65421 |
| 2700K / 900mm / Spot 17° / 19W / <10 / 795lm | 65406 | 65418 |
| 2700K / 900mm / Spot 17° / 38W / <10 / 1485lm | 65407 | 65419 |
| 2700K / 900mm / Medium 31° / 21W / <10 / 1320lm | 63996 | 64000 |
| 2700K / 900mm / Medium 31° / 39W / <10 / 2610lm | 63997 | 64001 |
| 2700K / 900mm / Flood 52° / 21W / <13 / 1380lm | 63998 | 64002 |
| 2700K / 900mm / Flood 52° / 39W / <16 / 2730lm | 63999 | 64003 |
| 2700K / 1200mm / Wallwasher / 26W / - / 1830lm | 65412 | 65424 |
| 2700K / 1200mm / Wallwasher / 51W / - / 3665lm | 65413 | 65425 |
| 2700K / 1200mm / Spot 17° / 26W / <10 / 1060lm | 65410 | 65422 |
| 2700K / 1200mm / Spot 17° / 51W / <10 / 1980lm | 65411 | 65423 |
| 2700K / 1200mm / Medium 31° / 27W / <10 / 1760lm | 60938 | 60946 |
| 2700K / 1200mm / Medium 31° / 52W / <10 / 3480lm | 60939 | 60947 |
| 2700K / 1200mm / Flood 52° / 27W / <13 / 1840lm | 60940 | 60948 |
| 2700K / 1200mm / Flood 52° / 52W / <16 / 3640lm | 60941 | 60949 |
| 3000K / 600mm / Wallwasher / 13W / - / 975lm | 65428 | 65440 |
| 3000K / 600mm / Wallwasher / 26W / - / 1955lm | 65429 | 65441 |
| 3000K / 600mm / Spot 17° / 13W / <10 / 565lm | 65426 | 65438 |
| 3000K / 600mm / Spot 17° / 26W / <10 / 1040lm | 65427 | 65439 |
| 3000K / 600mm / Medium 31° / 14W / <10 / 940lm | 60950 | 60958 |
| 3000K / 600mm / Medium 31° / 26W / <10 / 1880lm | 60951 | 60959 |
| 3000K / 600mm / Flood 52° / 14W / <13 / 980lm | 60952 | 60960 |
| 3000K / 600mm / Flood 52° / 26W / <16 / 1960lm | 60953 | 60961 |
| 3000K / 900mm / Wallwasher / 19W / - / 1465lm | 65432 | 65444 |
| 3000K / 900mm / Wallwasher / 38W / - / 2925lm | 65433 | 65445 |
| 3000K / 900mm / Spot 17° / 19W / <10 / 845lm | 65430 | 65442 |
| 3000K / 900mm / Spot 17° / 38W / <10 / 1565lm | 65431 | 65443 |
| 3000K / 900mm / Medium 31° / 21W / <10 / 1410lm | 64004 | 64008 |
| 3000K / 900mm / Medium 31° / 39W / <10 / 2820lm | 64005 | 64009 |
| 3000K / 900mm / Flood 52° / 21W / <13 / 1470lm | 64006 | 64010 |
| 3000K / 900mm / Flood 52° / 39W / <16 / 2940lm | 64007 | 64011 |
| 3000K / 1200mm / Wallwasher / 26W / - / 1955lm | 65436 | 65448 |
| 3000K / 1200mm / Wallwasher / 51W / - / 3900lm | 65437 | 65449 |
| 3000K / 1200mm / Spot 17° / 26W / <10 / 1130lm | 65434 | 65446 |
| 3000K / 1200mm / Spot 17° / 51W / <10 / 2085lm | 65435 | 65447 |
| 3000K / 1200mm / Medium 31° / 27W / <10 / 1880lm | 60954 | 60962 |
| 3000K / 1200mm / Medium 31° / 52W / <10 / 3760lm | 60955 | 60963 |
| 3000K / 1200mm / Flood 52° / 27W / <13 / 1960lm | 60956 | 60964 |
| 3000K / 1200mm / Flood 52° / 52W / <16 / 3920lm | 60957 | 60965 |
| 4000K / 600mm / Wallwasher / 13W / - / 1080lm | 65452 | 65464 |
| 4000K / 600mm / Wallwasher / 26W / - / 2160lm | 65453 | 65465 |
| 4000K / 600mm / Spot 17° / 13W / <10 / 325lm | 65450 | 65462 |
| 4000K / 600mm / Spot 17° / 26W / <10 / 1160lm | 65451 | 65463 |
| 4000K / 600mm / Medium 31° / 14W / <10 / 1260lm | 60966 | 60974 |
| 4000K / 600mm / Medium 31° / 26W / <10 / 2480lm | 60967 | 60975 |
| 4000K / 600mm / Flood 52° / 14W / <13 / 1300lm | 60968 | 60976 |
| 4000K / 600mm / Flood 52° / 26W / <16 / 2580lm | 60969 | 60977 |
| 4000K / 900mm / Wallwasher / 19W / - / 1620lm | 65456 | 65468 |
| 4000K / 900mm / Wallwasher / 38W / - / 3240lm | 65457 | 65469 |
| 4000K / 900mm / Spot 17° / 19W / <10 / 940lm | 65454 | 65466 |
| 4000K / 900mm / Spot 17° / 38W / <10 / 1740lm | 65455 | 65467 |
| 4000K / 900mm / Medium 31° / 21W / <10 / 1890lm | 64012 | 64016 |
| 4000K / 900mm / Medium 31° / 39W / <10 / 3720lm | 64013 | 64017 |
| 4000K / 900mm / Flood 52° / 21W / <13 / 1950lm | 64014 | 64018 |
| 4000K / 900mm / Flood 52° / 39W / <16 / 3870lm | 64015 | 64019 |
| 4000K / 1200mm / Wallwasher / 26W / - / 2160lm | 65460 | 65472 |
| 4000K / 1200mm / Wallwasher / 51W / - / 4325lm | 65461 | 65473 |
| 4000K / 1200mm / Spot 17° / 26W / <10 / 1250lm | 65458 | 65470 |
| 4000K / 1200mm / Spot 17° / 51W / <10 / 2325lm | 65459 | 65471 |
| 4000K / 1200mm / Medium 31° / 27W / <10 / 2520lm | 60970 | 60978 |
| 4000K / 1200mm / Medium 31° / 52W / <10 / 4960lm | 60971 | 60979 |
| 4000K / 1200mm / Flood 52° / 27W / <13 / 2600lm | 60972 | 60980 |
| 4000K / 1200mm / Flood 52° / 52W / <16 / 5160lm | 60973 | 60981 |
| 2200K-5000K / 600mm / Medium 31° / 23W* / <10 / 1360lm* | 60982 | |
| 2200K-5000K / 600mm / Flood 52° / 23W* / <16 / 1420lm* | 60983 | |
| 2200K-5000K / 1200mm / Medium 31° / 46W* / <10 / 2720lm* | 60984 | |
| 2200K-5000K / 1200mm / Flood 52° / 46W* / <16 / 2840lm* | 60985 |
* 3000K values
